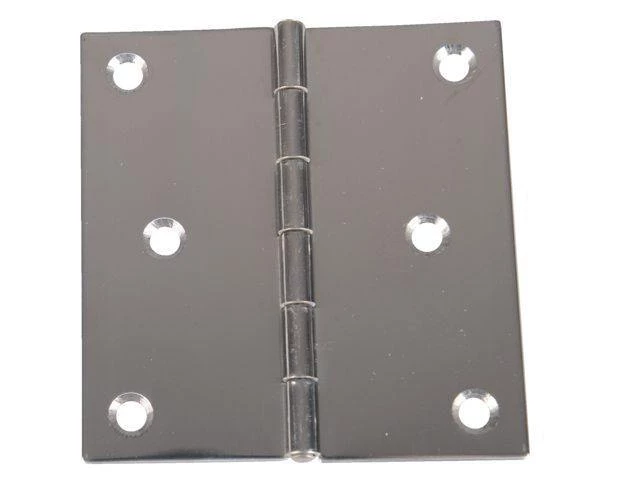

Stainless steel AISI 304. With 6mm screw holes. Hinges are 1,2mm thick.

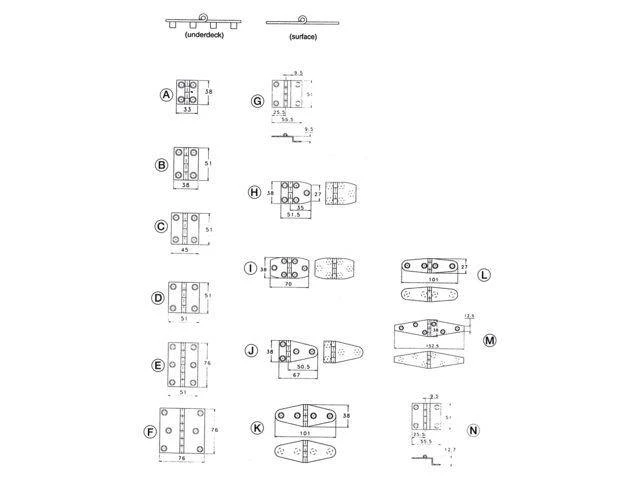

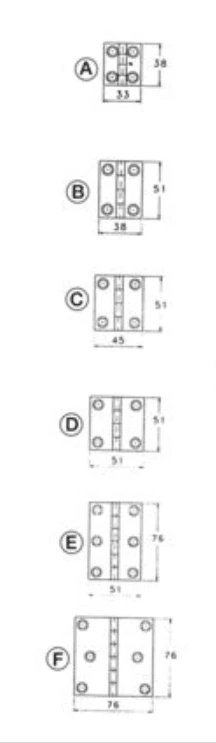

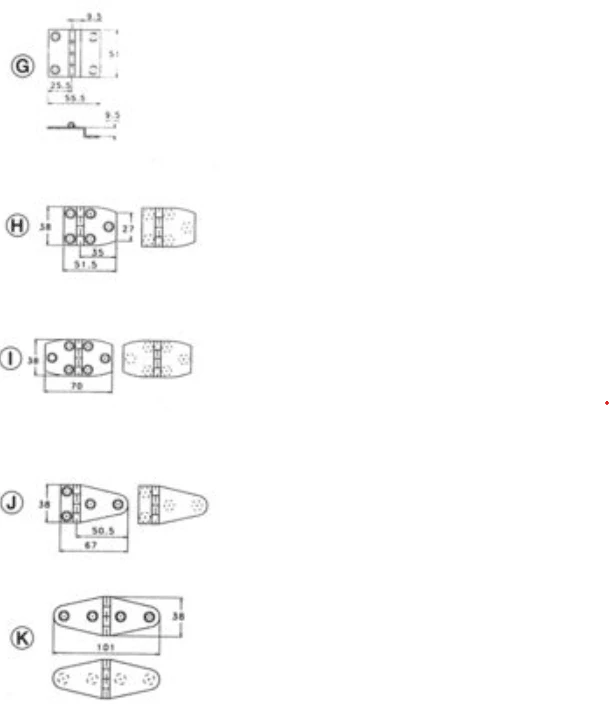

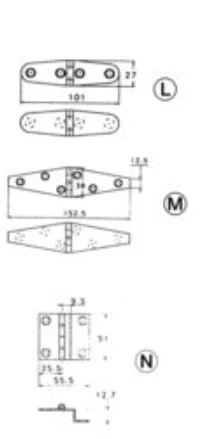

| Number | L x W mm | Drawing |
|---|---|---|
| 43802033 | 38 x 33 | A |
| 43802038 | 51 x 38 | B |
| 43802045 | 51 x 45 | C |
| 43802051 | 51 x 51 | D |
| 43802049 | 76 x 51 | E |
| 43802076 | 76 x 76 | F |
| 43802052 | 38 x 51,5 | H |
| 43802069 | 38 x 70 | I |
| 43802067 | 38 x 67 | J |
| 43802101 | 38 x 101 | K |
| 43802102 | 27 x 101 | L |
| 43802153 | 38 x 152,5 | M |
| 43802055 | 51 x 55,5 | G |
| 43802053 | 55,5 x 51 | N |
