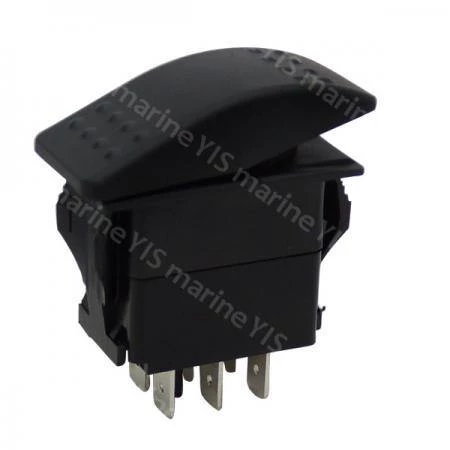

Marathon Boat Hardware YIS Marine C-7 IP67 Marine Rocker Switches
Original price was: $7.45.$4.69Current price is: $4.69.
- Your happiness, our mission.
- Free 1 year warranty period
- There are quality problems, free return and exchange
- Safe and Secure Payments, Always
Water-proof switches specially designed for marine or outdoor applications
As an upgraded version of the C-6 switches, the C-7 switches withstand more severe environment and are IP67 rated. C-7 switches are also equipped more durable and power efficient LED lamps and with dual voltage rating (DC 12V/24V). Furthermore, the C-7 switches come with a complete set of accessories including inter-changable actuators, replacing tool, mounting panels and label stickers.
FEATURES
- Sealed rocker switch to withstand severe outdoor environments
- Interchangeable actuators with various options
- Available in various switch function, illuminating and otherconfigurations
- LED illuminated (DC12V/ 24V dual voltage)
- PC Terminals (0.250” Quick Connect Terminals)
- IP67: Water proof even under temporary water immersion
- Customized switches (rating, LED colors, actuator color…etc.) possible
IP67 Water proof even under temporary water immersion
SPECIFICATION
- Rating (AC) | 125V 16A / 250V 10A
- Rating (DC) | 12V 20A / 24V 10A
- Contact R. | 50mΩ Max.
- Insulation R. | DC 500V 100MΩ Min.
- Dielectric Strength | AC 1500V 1minute
- Electrical Life | 20,000~50,000 switch function dependent
PRODUCT CODING
| Product ID | Type | Switch Function |
|---|---|---|
| C-7231R | SPST | ON-OFF |
| C-7234R | SPST | (ON) – OFF |
(ON): Momentary
| Title | Single Illuminated ON-OFF, Single Illuminated (ON)-OFF, Double Illuminated ON-OFF-ON, Non Illuminated (ON)-OFF-(ON), Non Illuminated (ON)-Off, Non Illuminated ON-OFF |
|---|
