Humminbird Fishin’ Buddy MAX DI

Mount this pint-sized pal and its 3.5″ display on your boat, your friend’s boat, a dock or even a float tube. With the multi-directional mount, you can clamp Fishin’ Buddy?almost anywhere, with no rigging or wiring, or even a transducer to mount. It also delivers easy One-Touch™ control and AA battery power. Fishin’ Buddy DI models offer Down Imaging so you can shed an entirely new light on structure and fish.

Features

• Dual Beam Sonar: Choose from a narrow and a wide beam for great detail or a generous coverage area, helping you identify fish, structure and contours.
• Down Imaging: Get a clear view of what’s happening below your boat with Down Imaging. As you patrol the water, you’ll watch timber, brush, bridge pilings, rocks and any other structure pop with great detail.
• Multi-Direction Mount: With this clamp mount, you can quickly and easily mount your Fishin’ Buddy® nearly anywhere, in any orientation. Best of all, there are no wires or rigging—period.
• No rigging, wiring or transducer to mount.

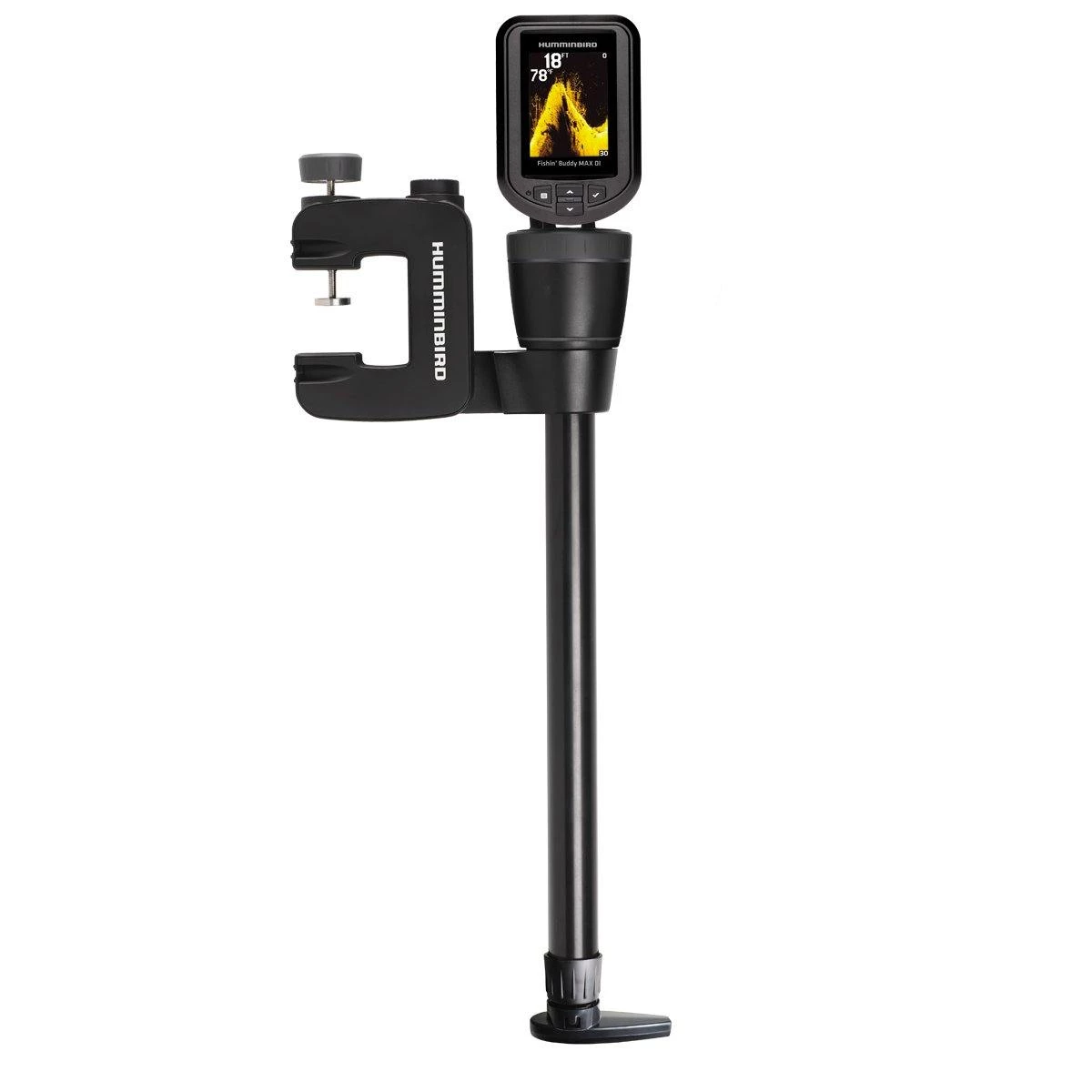

• Telescopic pole 24″ – 40″ with transducer attached.
• AA Battery Power: Power meets portability. The Fishin’ Buddy is fueled by just eight AA batteries for hours of fun and fishing—no wiring required.

Specs
Series: Fishin’ Buddy
Display Size – Diagonal: 3.5″
Display Pixel Matrix: 240H x 320V
Sonar-Standard: Down Imaging, Dual Beam
Sonar-Coverage: 28°, 16°, & 74° @ -10dB
Sonar-Frequencies Supported: 200/455/455 kHz
Depth-Sonar: 600 ft
Depth-Down Imaging: 320 ft
Interface: Keypad Control
Features: Down Imaging, Portable
Power Draw: 220 mA
Power Input: 8AA (12VDC)
Power Output Peak-to-Peak: 2400 Watts
Power Output RMS: 300 Watts
Mount-Standard: Portable Clamp
Transducer Mount Location: 24″ – 40″ Telescopic Pole
Target Separation: 2.5″
Display Colors Grayscale: 256 Color
Display Size: Less than 5″
Display Type: Color TFT
